제품 상세 정보:
|
| 자료 출력 지터 (RMS): | 1.5 (10.3125g 다운) ps | 모델: | U9210E |
|---|---|---|---|
| 데이터 속도: | 622m까지 최대 15Gbps | 상승과 하강 시간 (20% 내지 80%): | 18~23ps |
| 재료: | 금속 | ||
| 강조하다: | 12-channel BERT meter,BERT tester 622M to 15G,professional BERT testing equipment |
||

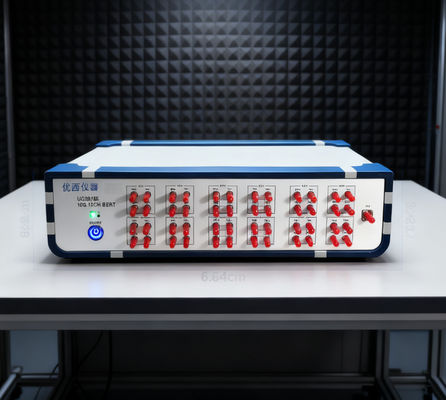

The BERT Tester Model U9210E is a high-quality testing instrument designed to meet the demands of modern data communication systems. This advanced tester offers precise measurements and analysis capabilities, making it an essential tool for engineers and technicians working in the field of high-speed data transmission.
Key features of the BERT Tester U9210E include data output jitter (RMS) of 1.5 (10.3125G Down)ps, rise and fall time (20% to 80%) of 18~23ps, and data rate capabilities ranging from 622M up to 15Gbps. These specifications make the U9210E an ideal choice for testing high-speed data transmission systems and ensuring compliance with industry standards.
Whether you are testing network equipment, optical devices, or other data communication systems, the BERT Tester U9210E provides the precision and accuracy you need to troubleshoot issues, optimize performance, and validate system functionality. Its user-friendly interface and intuitive controls make it easy to operate, saving you time and effort during testing procedures.
| No. |
parameter |
minimum |
typical |
maximum |
unit |
| 1 |
Data rate |
0.622 | 0.622,1.25,2.125,2.488,2.5,3.07,3.125,4.25,5.0,6.144,6.25,7.5,8.5 ,9.953,10.00,10.3125,10.52,10.709,11.09,11.32,11.7,14.025,15 | 15 | Gbps |
| 2 |
Code type |
PRBS7,PRBS9,PRBS15,PRBS23,PRBS31 | |||
| 3 |
Rise and fall time (20% to 80%) |
18 | 23 | ps | |
| 4 |
Pattern reversal |
Supports signal reversal at the receiving end |
|||
| 5 |
Signal output amplitude (single-ended) |
200 | 800 | 1000 | mV |
| 6 |
Data output jitter (RMS) |
1.5 (10.3125G down) |
ps | ||
| 7 |
Data input/output interface |
Differential, AC coupling, 50 ohm impedance, SMA |
|||
| 8 |
Clock output |
100 | 156.25 | 156.25 | MHz |
| 9 |
Data signal input sensitivity (single-ended) |
0.1 | Vpp | ||
| 10 |
Data output eye graph intersections |
50 | 52 | 54 | % |
| 11 |
Operating temperature |
10 | 25 | 50 | °C |
The 15G 12-channel electrical port bit error rate meter, with its core advantage of full rate compatibility from 622M to 15G, breaks the rate limit of traditional bit error rate meters. The electrical port design ensures seamless integration with electrical signal devices. The 12-channel synchronous working mode can efficiently complete parallel testing of multi-port devices. During the research and development stage of communication equipment, it can assist engineers in quickly locating signal transmission defects. In operation and maintenance scenarios, it can accurately identify network error code risks and is a "powerful tool" for full-chain reliability verification in the communication industry.
