제품 상세 정보:
|
| 데이터 속도: | 622m까지 최대 15Gbps | 모델: | U9210E |
|---|---|---|---|
| 재료: | 금속 | 상승과 하강 시간 (20% 내지 80%): | 18~23ps |
| 자료 출력 지터 (RMS): | 1.5 (10.3125g 다운) ps | ||
| 강조하다: | BERT Tester U9210E 622M,BERT Tester with 15Gbps data rate,BERT Tester for accurate data analysis |
||

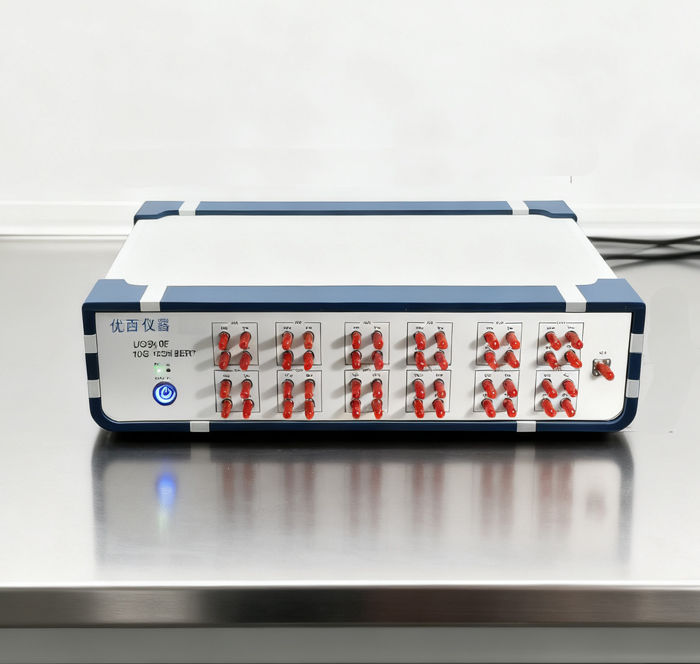

The BERT Tester U9210E is a versatile tool that can be used for various testing applications, including testing the quality and performance of optical and electrical interfaces, evaluating signal integrity in high-speed data transmission systems, and validating the compliance of communication devices with industry standards. Its user-friendly interface and intuitive controls make it easy to set up and operate, saving time and effort during testing procedures.
Whether you are a telecommunications engineer, a network technician, or a technology enthusiast looking to optimize your communication systems, the BERT Tester U9210E provides a reliable and accurate solution for your testing needs. Its robust construction, precise measurements, and high data rate capabilities make it an essential tool for ensuring the performance and reliability of your high-speed communication systems.
| No. |
parameter |
minimum |
typical |
maximum |
unit |
| 1 |
Data rate |
0.622 | 0.622,1.25,2.125,2.488,2.5,3.07,3.125,4.25,5.0,6.144,6.25,7.5,8.5 ,9.953,10.00,10.3125,10.52,10.709,11.09,11.32,11.7,14.025,15 | 15 | Gbps |
| 2 |
Code type |
PRBS7,PRBS9,PRBS15,PRBS23,PRBS31 | |||
| 3 |
Rise and fall time (20% to 80%) |
18 | 23 | ps | |
| 4 |
Pattern reversal |
Supports signal reversal at the receiving end |
|||
| 5 |
Signal output amplitude (single-ended) |
200 | 800 | 1000 | mV |
| 6 |
Data output jitter (RMS) |
1.5 (10.3125G down) |
ps | ||
| 7 |
Data input/output interface |
Differential, AC coupling, 50 ohm impedance, SMA |
|||
| 8 |
Clock output |
100 | 156.25 | 156.25 | MHz |
| 9 |
Data signal input sensitivity (single-ended) |
0.1 | Vpp | ||
| 10 |
Data output eye graph intersections |
50 | 52 | 54 | % |
| 11 |
Operating temperature |
10 | 25 | 50 | °C |
The YOUCii BERT Tester U9210E is a versatile and reliable tool designed for a wide range of product testing applications in various industries. With its high-quality construction using metal materials and precision engineering, this BERT Tester is a top choice for professionals seeking accurate and efficient testing solutions.
Originating from China, the YOUCii BERT Tester U9210E combines quality craftsmanship with advanced technology to meet the demands of modern testing requirements. Its robust design and user-friendly interface make it suitable for a wide range of testing scenarios across different industries.
From research laboratories to production facilities, the YOUCii BERT Tester U9210E excels in a variety of product application occasions and scenarios. Its ability to deliver accurate and repeatable results makes it an essential tool for ensuring the quality and performance of your products.
