제품 상세 정보:
|
| 자료 출력 지터 (RMS): | 1.5 (10.3125g 다운) ps | 데이터 속도: | 622m까지 최대 15Gbps |
|---|---|---|---|
| 상승과 하강 시간 (20% 내지 80%): | 18~23ps | 재료: | 금속 |
| 모델: | U9210E | ||
| 강조하다: | 15G BERT tester with 12-channel,622M to 15G bit error rate meter,electrical port BERT tester |
||

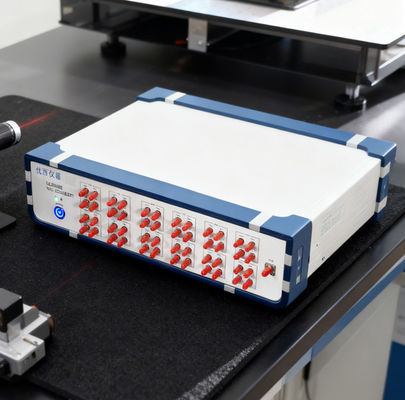

The BERT Tester Model U9210E is a high-quality testing device designed to meet the demanding requirements of modern data communication systems. This advanced tester is capable of accurately measuring and analyzing the performance of high-speed digital communication signals, making it an essential tool for engineers and technicians working in the field of data transmission.
One of the key features of the U9210E BERT Tester is its impressive rise and fall time capabilities. With a rise and fall time ranging from 18 to 23 picoseconds (ps), this tester is able to accurately capture the fast transitions of digital signals, ensuring precise and reliable measurements.
Overall, the U9210E BERT Tester is a top-of-the-line testing instrument that delivers exceptional performance and reliability. With its advanced features, precise measurements, and durable construction, this tester is an essential tool for professionals working in the field of data communication. Trust the U9210E BERT Tester to meet your testing needs and help you achieve optimal performance in your data transmission systems.
| No. |
parameter |
minimum |
typical |
maximum |
unit |
| 1 |
Data rate |
0.622 | 0.622,1.25,2.125,2.488,2.5,3.07,3.125,4.25,5.0,6.144,6.25,7.5,8.5 ,9.953,10.00,10.3125,10.52,10.709,11.09,11.32,11.7,14.025,15 | 15 | Gbps |
| 2 |
Code type |
PRBS7,PRBS9,PRBS15,PRBS23,PRBS31 | |||
| 3 |
Rise and fall time (20% to 80%) |
18 | 23 | ps | |
| 4 |
Pattern reversal |
Supports signal reversal at the receiving end |
|||
| 5 |
Signal output amplitude (single-ended) |
200 | 800 | 1000 | mV |
| 6 |
Data output jitter (RMS) |
1.5 (10.3125G down) |
ps | ||
| 7 |
Data input/output interface |
Differential, AC coupling, 50 ohm impedance, SMA |
|||
| 8 |
Clock output |
100 | 156.25 | 156.25 | MHz |
| 9 |
Data signal input sensitivity (single-ended) |
0.1 | Vpp | ||
| 10 |
Data output eye graph intersections |
50 | 52 | 54 | % |
| 11 |
Operating temperature |
10 | 25 | 50 | °C |
The YOUCii BERT Tester U9210E is a high-quality testing instrument designed for a wide range of applications in the field of data communication. This BERT Tester is manufactured in China using durable metal materials, ensuring reliability and longevity in various testing environments.
Engineered for versatility, this BERT Tester is well-suited for a variety of scenarios across different industries. From telecommunications to data centers, the YOUCii BERT Tester U9210E offers the precision and performance needed to validate the quality of data transmission systems.
