제품 상세 정보:
|
| 광 커넥터: | PC/APC | 차원: | 1U/2U/랙 유형 |
|---|---|---|---|
| andwidth@3 db: | <0.1 nm | 출력 전원: | ≥8.0MW |
| 제어 인터페이스: | USB/RS232 | 작동 온도: | 0~ +40 Ｃ |
| 강조하다: | stainless steel tile trim 10mm,professional tile installation trim,stainless steel tile edge trim |
||

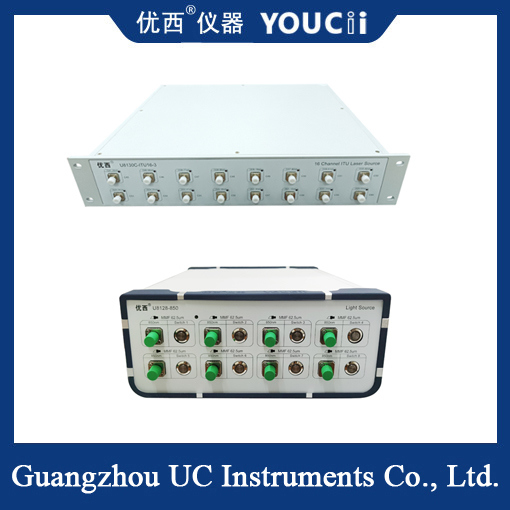

Point light sources are multi-functional and advanced products designed to meet the demanding requirements of various industries, featuring cutting-edge functions. This product offers a wide range of functions and capabilities, making it an essential tool for professionals in fields such as telecommunications, research and development.
One of the key attributes of point light sources is their diverse control mode options, which provide users with flexibility and convenience. Through interfaces such as USB and RS232, users can easily connect and operate devices in their preferred ways, ensuring seamless integration into existing systems and workflows.
In terms of output power, the point light source offers outstanding performance, with an output power as high as +10 dBm. This power output capability enables users to generate powerful and reliable laser signals for a wide range of applications, ensuring consistent and accurate results.
Specification
| Model # | U8138/U8130-16 | |
| Device Package | Butterfly | |
| Optional Wavelength |
850/980/1250/1270/1290/1310/1330/1350/1370/1390/1410/1430/ 1450/1470/1490/1510/1530/1550/1570/ 1590/1610/1625 nm etc. |
|
| Wavelength Accuracy | ± 0.5 nm | |
| Output Power | ≥8.0mW | |
| Connector Type | FC/APC (Other Adaptor Can Be Customized) | |
| Bandwidth@3 dB | ＜ 0.1 nm | |
| Bandwidth@20 dB | ＜ 0.5 nm | |
|
Output Power Stability within 15mins |
≤±0.005 dB | |
|
Output Power Stability within 8 hrs |
≤±0. 05 dB | |
| SMSR | ＞ 40 dB | |
| Operation Temperature | 0～ +40 ℃ | |
| Storage Temperature | -30～+80 ℃ | |
| Dimensions | 235 mm W, 55 mm H, 320 mm D | |
| Weight | 3.0 kg | |
In conclusion, the point light source is a top-notch product that combines advanced functions, reliable performance and user-friendly design to meet the diverse needs of professionals in different industries. Whether used in telecommunications, research laboratories or development facilities, this product is a powerful and multi-functional tool that consistently provides outstanding results.
