제품 상세 정보:
|
| 선의 폭: | <0.1 nm | 광 커넥터: | UPC/APC |
|---|---|---|---|
| 출력 전원: | +20 데이터 베이스 관리 프로그램까지 | 차원: | 285 mm W, 105 mm h, 360 mm d |
| 제어 인터페이스: | USB/RS232 | 무게: | 5.0 kg |
| 강조하다: | Industrial battery spot welder with USB control,Laser spot welding machine with RS232 interface,Tunable laser welder with 20 DBm output |
||

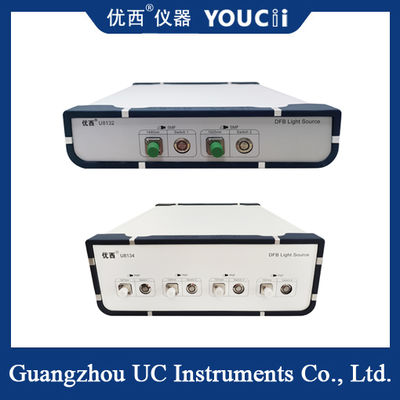

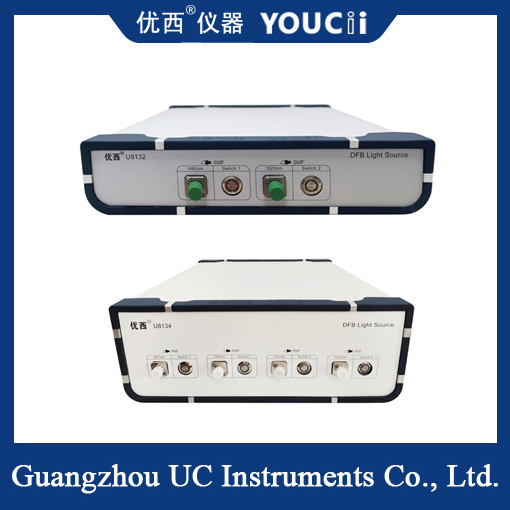

The DFB laser light source is a multi-functional product that offers a wide range of functions suitable for various applications. It features multiple control interfaces, including USB and RS232, providing users with flexibility and ease of use. Whether you prefer direct connection or remote control options, this tunable laser source can meet your needs.
One of the standout features of this product is its ultra-narrow linewidth of less than 0.1 Nm, ensuring high precision and accuracy in your measurements. This makes it ideal for applications where precise wavelength control is essential, such as in optical communications or spectroscopy.
When it comes to output power, the tunable laser source can provide up to +20 dBm, ensuring strong and stable signals for your experiments or testing procedures. This high output power capability makes it suitable for demanding applications that require robust signal strength, such as in fiber optic testing or component characterization.
Specification
| Model # | U8134H-20 |
| Device Package | Butterfly |
| Optional Wavelength | 1270, 1290, 1310, 1330 nm (Other wavelengths are optional) |
| Wavelength Accuracy | ± 2 nm |
| Output Power | 100mW (20dBm) |
| Connector Type | FC/APC (Other Adaptor Can Be Customized) |
| Bandwidth@3 dB | ＜ 0.1 nm |
| Bandwidth@20 dB | ＜0.5 nm |
|
Output Power Stability within 15mins |
±0.01 dB |
|
Output Power Stability within 8 hrs |
±0. 05 dB |
| SMSR | ＞ 45 dB |
| Operation Temperature | 0～ +40 ℃ |
| Storage Temperature | -30～+80 ℃ |
| Dimensions | 285 mm W, 105 mm H, 360 mm D |
| Weight | 5.0 kg |
In conclusion, the DFB light source is a powerful and versatile tool that can meet the demands of modern optical testing and research. This product features multiple control interfaces, ultra-narrow line width, high modulation frequency, strong output power, and reliable optical connectors, making it suitable for a wide range of applications in various industries.
