제품 상세 정보:
|
| 작동 온도: | -30 ~ +80C | 전원 공급 장치: | 100~240V AC |
|---|---|---|---|
| 차원: | 245 mm W, 105 mm h, 320 mm d | 구경 측정: | 공장/필드 |
| 데이터 인터페이스: | USB/RS232 | 표시하다: | LCD |
| 강조하다: | Portable optical power meter with battery,Optical power meter FC/SC/ST connector,Optical power meter 0 to 60 dBm |
||

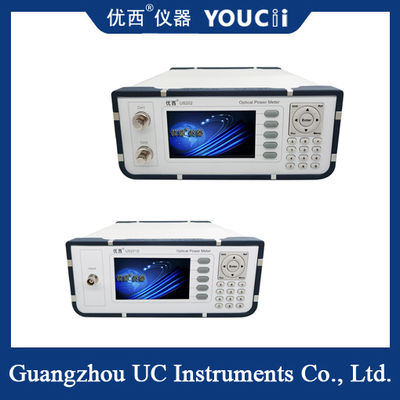

The Optical Power Meter is a versatile and reliable tool designed for precise measurement of optical power in various fiber optic networks. With its compact dimensions of 245 mm W, 105 mm H, 320 mm D, this power meter is portable and convenient to use in different settings.
Equipped with a generous data storage capacity of 1000 data points, users can store and retrieve measurement results easily for analysis and documentation purposes. This feature enhances efficiency and accuracy in data management.
The measurement range of the Optical Power Meter spans from +5 to -70 dBm, providing a wide dynamic range to accommodate different power levels in fiber optic systems. This broad range ensures that users can accurately measure power levels across various applications.
| Model | U8202 | |||
| Number of Channels | 2 | |||
| Power Range | +10 ~ -65dBm / +5 ~ -70dBm | |||
| Wavelength Range | 850 ~ 1700 nm | |||
| Calibration Wavelength | 850/980/1310/1490/1550/1610 nm | |||
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | |||
|
Absolute Uncertainty (accuracy) at reference condition |
± 4% (1200 nm ~ 1610 nm) | |||
|
Relative Uncertainty (accuracy) at reference condition |
＜ 0.02 dB Typical | |||
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm) | |||
| Return Loss | ＞ 40 dB | |||
| Operation Temperature | 0 ～ +40℃ | |||
| Storage Temperature | -30 ～ +80℃ | |||
| Recalibration Period | 2 years | |||
| Dimensions | 245 mm W, 105 mm H, 320 mm D | |||
| Weight | 2.0 kg | |||
With a wavelength range optimized for precise power measurements, this power meter ensures accurate readings across different wavelengths commonly used in fiber optic networks. This feature enhances the versatility and applicability of the power meter in various network setups.
In addition to measuring power levels, the Optical Power Meter also provides valuable insights into return loss within the network. By detecting and analyzing return loss, users can optimize network performance and troubleshoot potential issues effectively.
Designed to meet the demands of professionals in the field, the Optical Power Meter offers a comprehensive power range measurement capability. Whether for testing, maintenance, or installation tasks, this power meter delivers accurate and reliable results to support efficient network operations.
